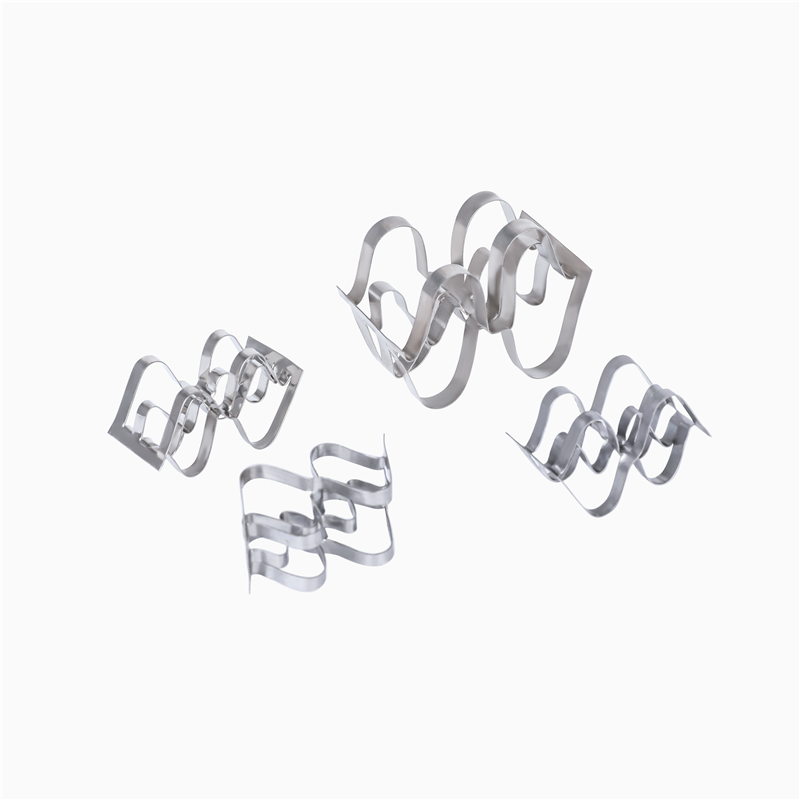

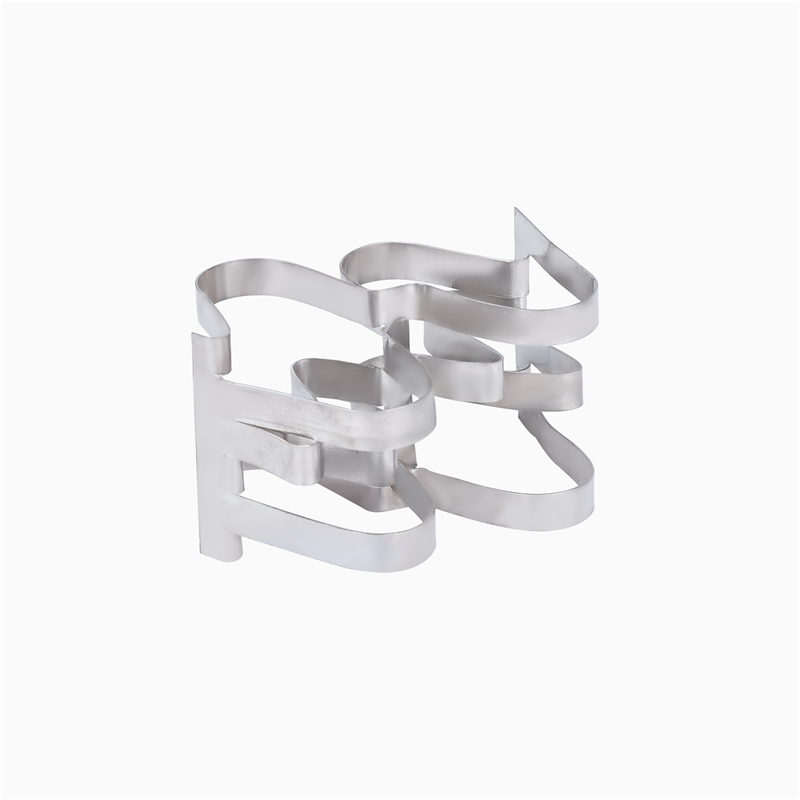

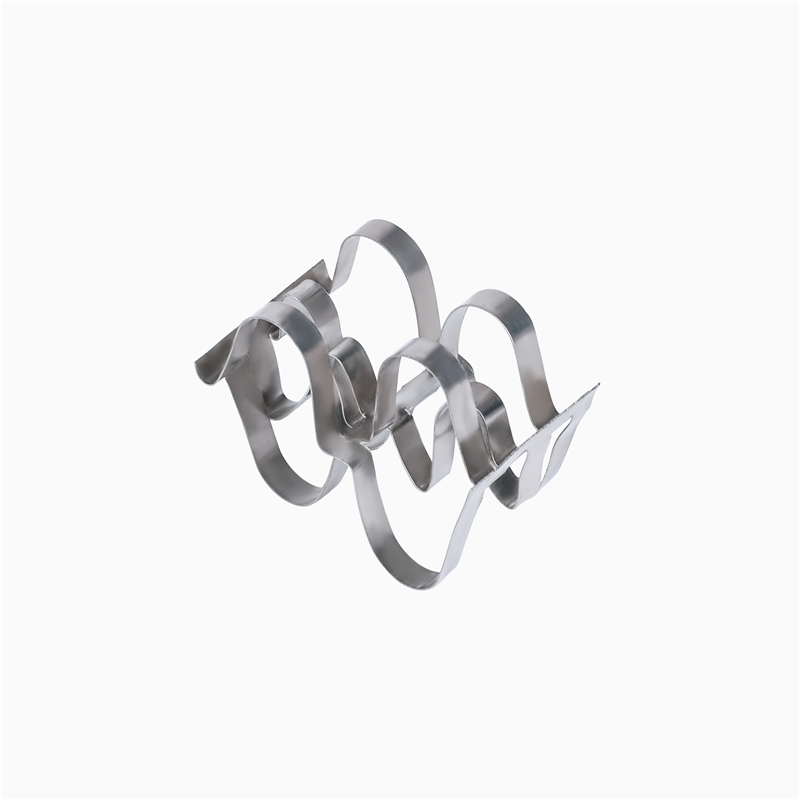

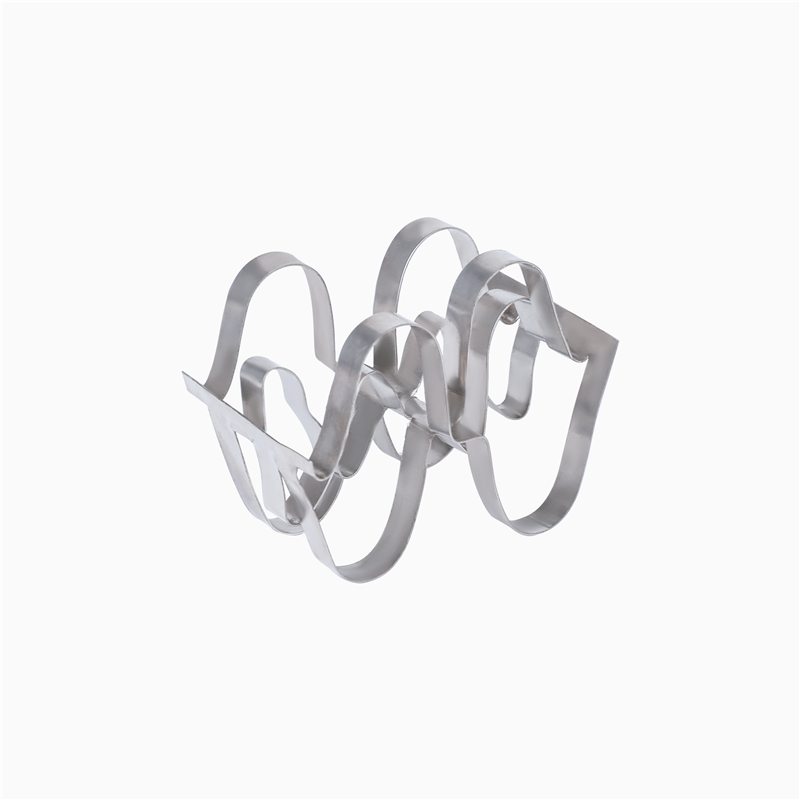

METAL SUPER RASCHIG RING
The design of the Super Raschig Ring offers an optimal solution to industry's demands for a modern heavy-duty packing. Unlike previous packing shapes, the Super Raschig Ring avoids the droplet formation which is such a frequent interference accompanying large gas loads. The Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal pickings by over 10%.
Materials and Options
Available in a wide range of materials such as stainless steel 304, 304L, 316, 316L, carbon steel , aluminum and other alloy etc.
Advantage
Applications and Industries
The super raschig ring elements contain an open uniform material distribution of sinusoidal waves and multiple contact points to encourage turbulent liquid film flows over the element and minimizes drop formation.It is also suitable for liquids contaminated with solids.
Specifications
Size |
Surface area |
Void ratio |
Number |
(mm) |
(m2/m3) |
(%) |
(pieces/m3) |
15 |
315 |
96 |
180000 |
20 |
250 |
97 |
145000 |
25 |
180 |
98 |
46500 |
30 |
150 |
98 |
32000 |
38 |
120 |
98 |
13750 |
50 |
100 |
98 |
9500 |
If you are interested in our products or have any questions, please consult us.
