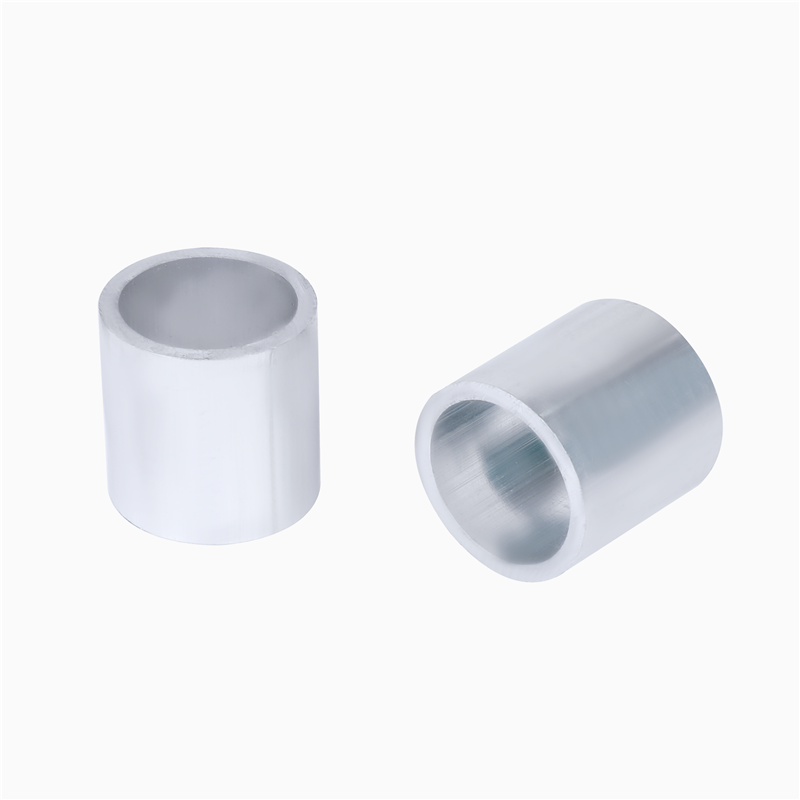

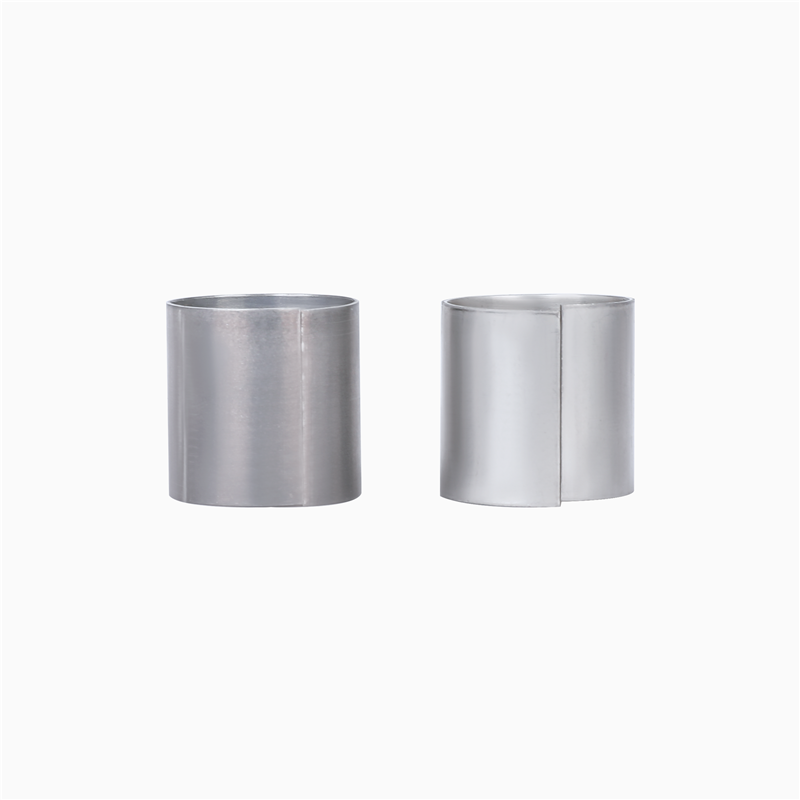

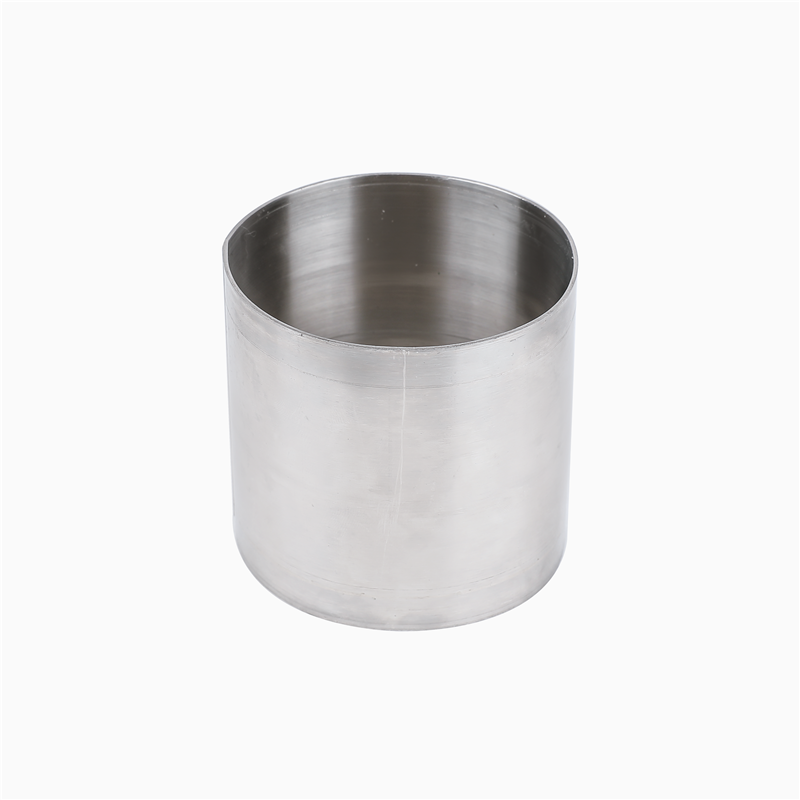

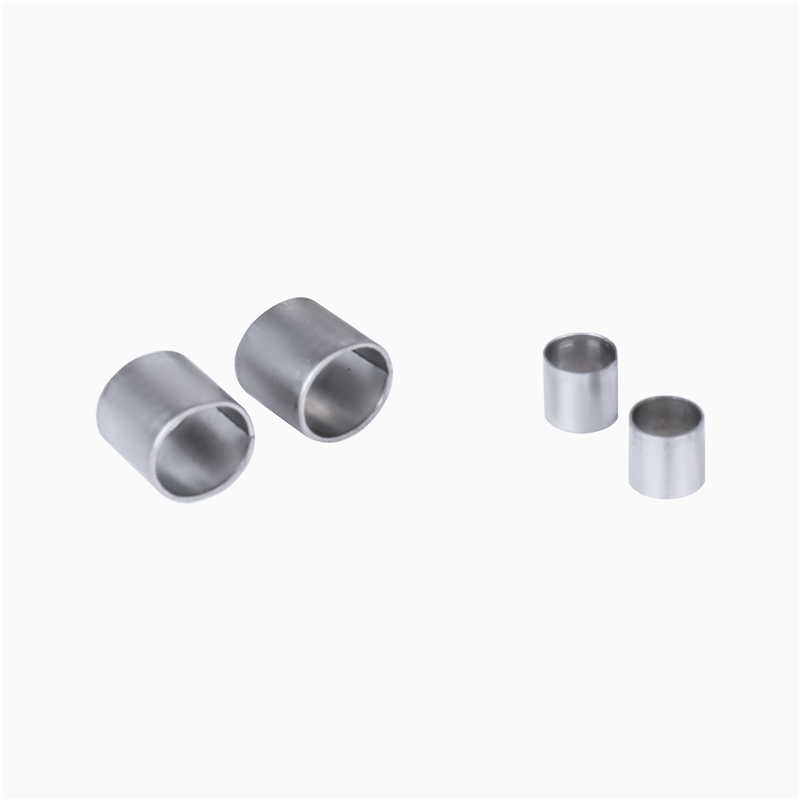

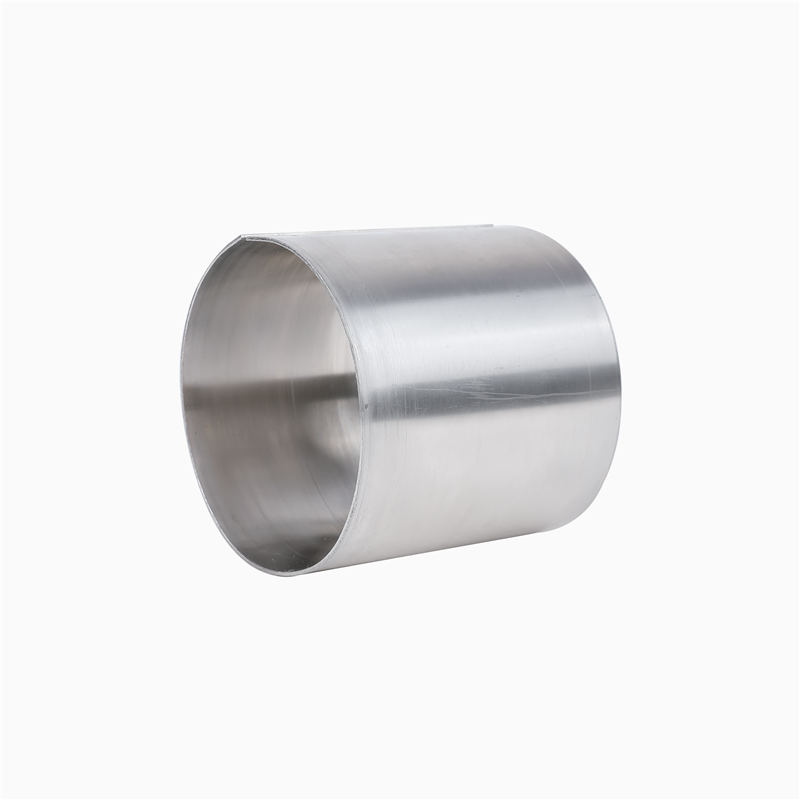

METAL RASCHIG RING
Since 1914 when F.Raschig invented this type of ring for tower packing, random tower pickings have been developed extensively. The Metal Raschig Ring structure provides one of the largest surface areas among tower packing options and handles heavy loading, process upsets and temperature shocks.
Materials and Options
Available in a wide range of materials such as stainless steel 304, 304L, 316, 316L, carbon steel , aluminum and other alloy etc.
Advantage
Applications and Industries
Specifications
Sizes |
Diameter(mm) |
Bulk density(kg/m³) |
Number(m³) |
Surface area(m²/m³) |
Free volume(%) |
10# |
Φ10*H10*0.3 |
571 |
768000 |
500 |
75 |
12.7# |
Φ12.7*H12.7*0.3 |
490 |
410000 |
400 |
80 |
16# |
Φ16*H16*0.3(0.4) |
408(543) |
214000 |
350 |
86 |
25# |
Φ25*H25*0.5(0.6) |
403(483) |
52000 |
220 |
88 |
38# |
Φ38*H38*0.6(0.8) |
326(435) |
15200 |
150 |
90 |
50# |
Φ50*H50*0.8(1.0) |
322(403) |
6500 |
110 |
92 |
76# |
Φ76*H76*1.0(1.2) |
262(314) |
1830 |
68 |
95 |
89# |
Φ89*H89*1.2(1.5) |
283(353) |
1200 |
58 |
97 |
