What are the types of packing in distillation column?

The types of packing that exist include Raschig rings, Pall rings, Berl saddle ceramic rings, Intalox saddle ceramic rings, metal hypac and super Intalox ceramic rings.




RASCHIG RINGS

Raschig Rings were the first kind of packing used in mass transfer processes, and they consist of a hollow cylindrical tube with a height to diameter ratio of 1:1. They display an exceptional strength to weight ratio and are much more resistant to fouling than other types of packing

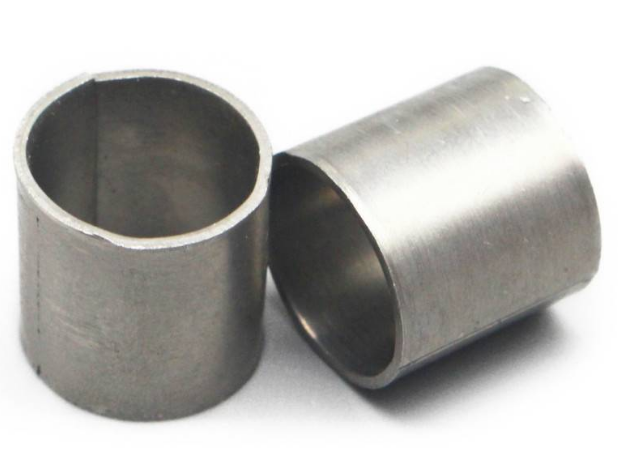

METAL RASCHIG RING

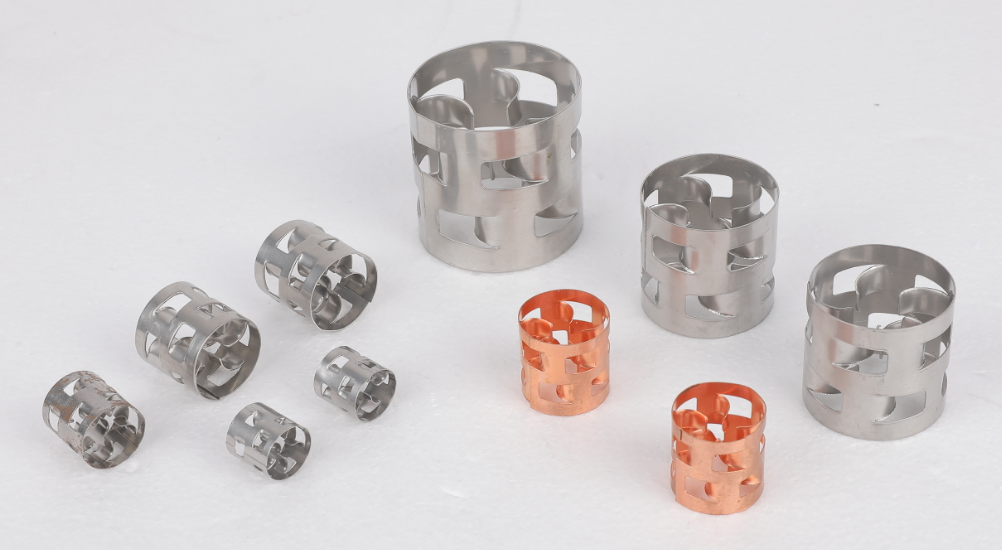

PALL RINGS

Pall rings are a progression from the Raschig rings and have the same cylindrical shape and ratio. However, they have two rows of punched out holes with webs from the centre which drastically enhances the execution of the packing with regards to the pressure drop, throughput and efficiency



PRESSURE DROP VERSUS CAPACITY

They are most appropriate when a low-pressure drop is required in high capacity scenarios and can be customised in a wide variety of sizes for optimum performance for separation. They create a large amount of randomness, and the high surface area to volume ratio enhances mass transfer. Pall rings provide a consistent ratio of free and blocked pathways regardless of the orientation.


MECHANICAL STRENGTH

The internal structure with the web-like design results in a mechanically robust type of packing that is appropriate for use in packed beds that are deep.

Metal pall rings can be made of stainless steel alloys or other metals and provide the advantage that they are capable of handling higher temperature separations and are highly resistant to fouling and are also mechanically robust. They are typically used in separations with H2S, NH3 and SO2 as well as absorption and stripping, steam stripping, quench towers and direct contact cooling.


BERL SADDLES

The ceramic Berl saddles are an improvement from both the Pall rings and Raschig rings with regards to an enhanced flow distribution. The shape of the saddles has both the external and internal surfaces exposed, and the distribution of vapour-liquid is the same on both sides. When comparing Berl saddles to the previous two types of packing, they produce a lower pressure on the surrounding column walls

Berl saddles typically consist of chemical grade porcelain which is chemically resistant to many substances apart from Hydrogen Fluoride and strong alkalis. It is most appropriate for sulphuric acid applications.
